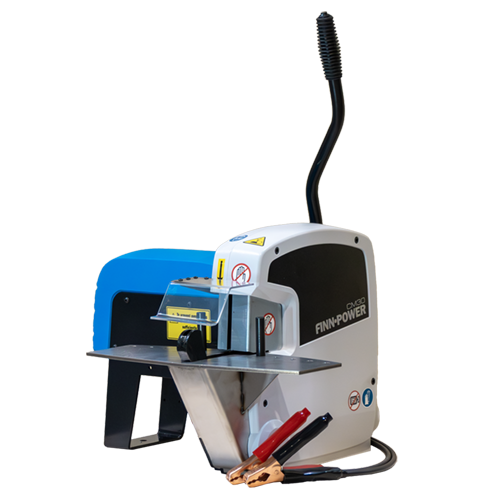

CM30CS is designed for service van use. CM30CS is manually operated and easy to use and it comes with a fume exhaust connection.
12 or 24V operated versions available. Please also see product cards for other CM30/35 configurations.
| Control | Models | |
|---|---|---|
| No other models available | ||
| Standard Features | Options | |
| Toothed blade (part no 12297) | Smooth blade (part no 12319) | |
Technical Data
| TECHNICAL DATA | |
|---|---|
| Max. hose size (inch) ¹ | 2 / 1 ¼ |
| Diameter (blade) external (mm) | 300x3 |
| Diameter (blade) internal (mm) | 30 |
| Max. hose OD (mm) | 70 |
| Exhaust outlet OD (mm) | 60 |
| Motor Power (kW)² | 2.2 / 1.5 |
| Motor Power (HP)² | 3.0 / 2.0 |
| Velocity, 12VDC (rpm) | 3000 |
| Velocity, 24VDC (rpm) | 2800 |
| DIMENSIONS (LxWxH) | |
| mm | 600x503x739 |
| inch | 23.6x19.8x29.1 |
| WEIGHT (KG/LBS) | |
| kg/lbs | 37/81,4 |
1) Hydraulic hose, 1-2 wire / 4 wire.
2) 12V / 24V. Overload controlled.
