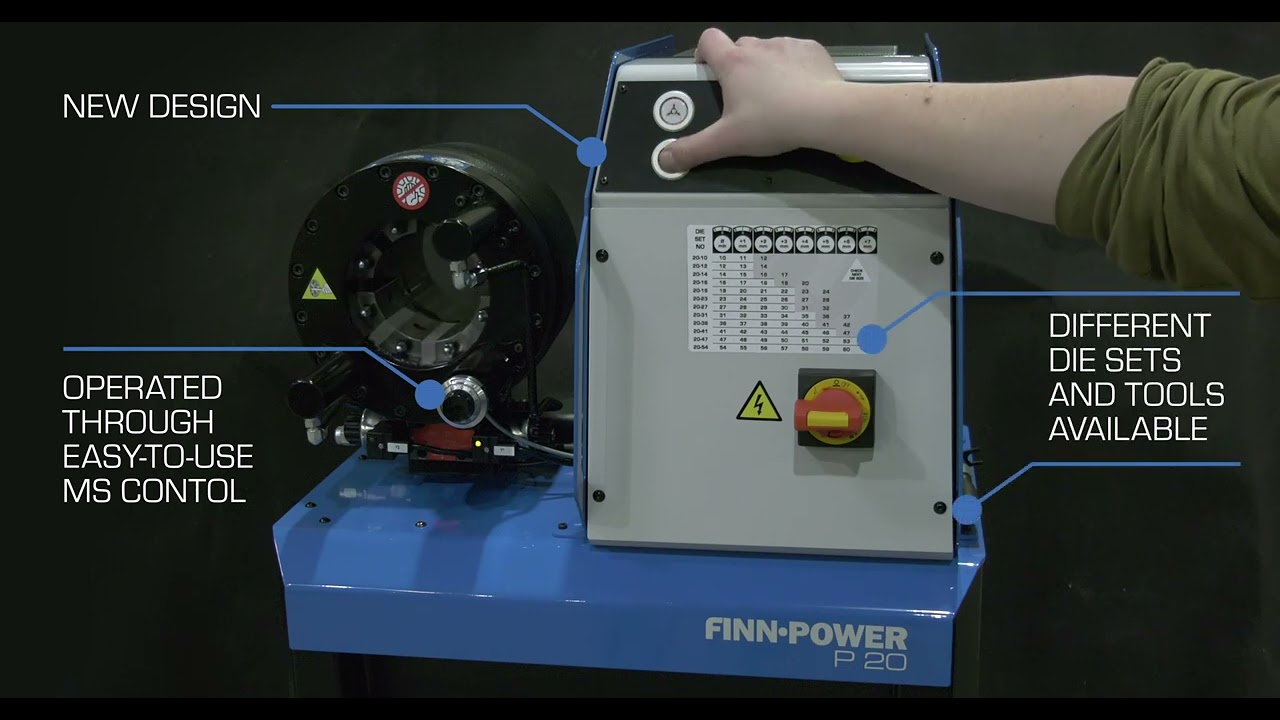

Finn-Power P20NMS is strong, fast and
reliable crimping machine for any service
crimping need. This model turns hydraulics off
to conserve energy, and to reduce workplace
noise levels whenever the machine is idle.
| Control | Models | |
|---|---|---|
| MS | No other models available | |
| Options | ||
|
Foot pedal (part no 676906) Mechanical back stop device (part no 705509) Tool base (20 slots) with QuickChange-tool (part no 710578) Tool rack with QuickChange-tool (part no 415663) QuickChange-tool (part no 691043) |
||
Technical Data
| TECHNICAL DATA | |
|---|---|
| Max crimping dia (mm) 1) | 61/2.40 |
| Max crimping dia with master dies (mm/inch) | 94/3.7 |
| Max crimping force (kN) | 1370 |
| Max crimping force (tonnage) | 137 |
| Cycle time 10 mm (s) 2) 3) | 3.6/10.3 |
| Hydraulic hose size (inch) | 1 ½ * |
| Industrial hose size (inch) | 2.40 * |
| Die set series | 20 |
| Max opening (mm) 4) | +25 |
| Max opening without dies (mm) | 109 |
| Master die D/L (mm) | 84/80 |
| Master die D/L (inch) | 3.31/3.15 |
| Motor Power (kW/HP) 3) | 3.0/4.0 1.5/2.0 |
| Oil tank volume | 27 l |
| DIMENSIONS (LxWxH) | |
| (mm) | 650x510x620 |
| (inch) | 25.6x20.1x24.4 |
| WEIGHT | |
| KG/LBS | 145/309 |
*ACCORDING TO THE FITTING.
1) With standard dies. Crimping range can be
increased with special dies.
2) Theoretical with 10 mm cycle.
3) 3-phase/1-phase
4) Maximum opening is the total die travel. Add
this value to the minimum crimping diameter
of the die set used. The result is the maximum
opening of the machine with die set in place.
Die Set 20-series
| DieSetNo | D (mm) | L (mm) | Crimp. range (mm) |
|---|---|---|---|
| 18013/10 | 10 | 55 | 10.0-12.0 |
| 18013/12 | 12 | 55 | 12.0-14.0 |
| 18013/14 | 14 | 55 | 14.0-16.0 |
| 18013/16 | 16 | 55 | 16.0-19.0 |
| 18013/19 | 19 | 55 | 19.0-23.0 |
| 18013/23 | 23 | 55 | 23.0-27.0 |
| 18013/27 | 27 | 70 | 27.0-31.0 |
| 18013/31 | 31 | 70 | 31.0-36.0 |
| 18013/36 | 36 | 75 | 36.0-41.0 |
| 18013/41 | 41 | 75 | 41.0-47.0 |
| 18013/47 | 47 | 85 | 47.0-54.0 |
| 18013/54 | 54 | 85 | 54.0-61.0 |
In addition to the standard die sets, a wide range of special die sets is available on request.
