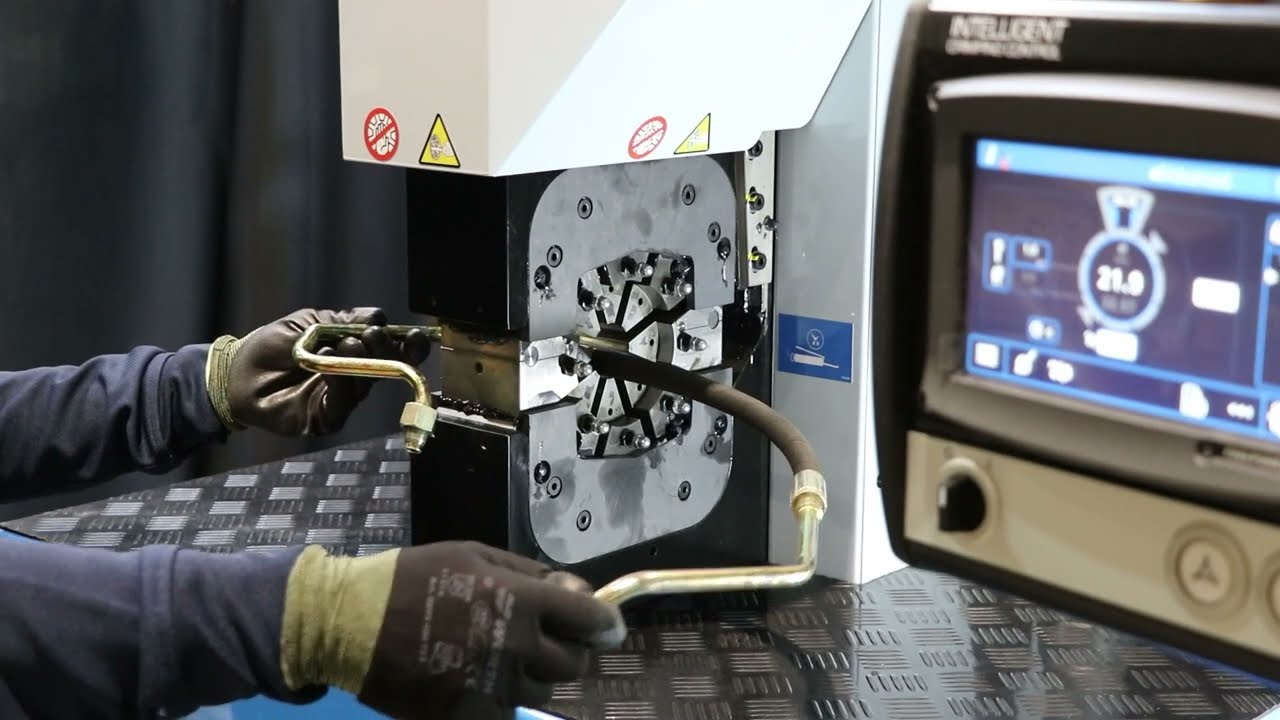

Finn-Power SP-series crimping machines with open
C-frame structure are optimal for crimping any odd
shape, bent or otherwise complex hose assemblies.
SP350 with 35 ton force is designed for demanding
automotive hoses and other bent components requiring side feeding.
SP350 has adjustable crimp head angle for easier part orientation
and visibility. SP350 comes with moveable swing arm for ICC control.
SP350 also available in following configurations:
– Z-model with separate crimping head and hydraulic unit
– S-model with enhanced cycle time
– D-model with double head configuration (on request)
| Control | Models | |
|---|---|---|
| ICC (7” touchscreen) | No other models available | |
| Standard Features | Options | |
|
Foot pedal (part no 691563) QuickChange-tool (part no 691043) Pressure crimping ICC1 Step crimping ICC2 |
Foot pedal (Z-model) (part no 691563) Auto greasing G3 Remote control unit R2 (double hand) Quality control ICC3 Graphical quality control ICC4 Interface pack ETH (Communication TCP/IP & UDP) A3 signal Bar Code Reader BCR Oil Condition Monitoring OCM |
|
Technical Data
| TECHNICAL DATA | |
|---|---|
| Crimping range (mm) 1) | 10-54 |
| Crimping range (inch) 1) | 0.39-2.12 |
| Max crimping force (kN) | 350 |
| Max crimping force (tonnage) | 50 |
| Cycle time 10 mm (s) 2) | 1.1 (S-model: 0.7) |
| Hose size ID (inch) | 1 ¼ |
| Die set series 3) | CC22 |
| Max. opening (mm) 4) | +25/+48 |
| Master die D/L (mm) | 84/78 |
| Master die D/L (inch) | 3.31/3.07 |
| Motor Power (kW/HP) | 3.0/4.0 |
| Oil tank volume | 50 l |
| DIMENSIONS (LxWxH) | |
| Machine (mm) | 970x1020x1871 |
| Machine (inch) | 38.2x40.2x73.7 |
| WEIGHT (KG/LBS) | |
| Machine | 710/2050 |
1) With standard dies. Crimping range can be
increased with special dies.
2) Theoretical with 10mm cycle.
3) See table for die set data.
4) Maximum opening is the total die travel. Add this value to the minimum crimping diameter of the die set used. The result is the maximum opening of the machine with die set in place.
2) Theoretical with 10mm cycle.
3) See table for die set data.
4) Maximum opening is the total die travel. Add this value to the minimum crimping diameter of the die set used. The result is the maximum opening of the machine with die set in place.
Die Set CC22-series
| DieSetNo | D (mm) | L (mm) | Crimp. range (mm) |
|---|---|---|---|
| 18315/10 | 10 | 50 | 10.0-12.0 |
| 18315/12 | 12 | 50 | 12.0-14.0 |
| 18315/14 | 14 | 50 | 14.0-16.0 |
| 18315/16 | 16 | 50 | 16.0-19.0 |
| 18315/19 | 19 | 50 | 19.0-23.0 |
| 18315/23 | 23 | 50 | 23.0-27.0 |
| 18315/27 | 27 | 50 | 27.0-31.0 |
| 18315/31 | 31 | 50 | 31.0-36.0 |
| 18315/36 | 36 | 50 | 36.0-41.0 |
| 18315/41 | 41 | 50 | 41.0-47.0 |
| 18315/47 | 47 | 50 | 47.0-54.0 |
In addition to the standard die sets, a wide range of special die sets is available on request.
